DYAS frame - Frame laths for beds


The initial semi product for frame laths is a layered pressed wood made of beech veneers which are 1,5mm thick. Unlike plywood, nearly all veneers have the same grain flow. By this, a high bending strength is achieved in the grain direction. After being processed, plywood boards are cut into frame laths of requested dimensions. Laths are used for the production of bed frames.

DYAS Frame

is a health harmless wood product complying with the A (E1) Class of formaldehyde escape according to ČSN EN 1084 norm - by the method of gas analysis.

Application:

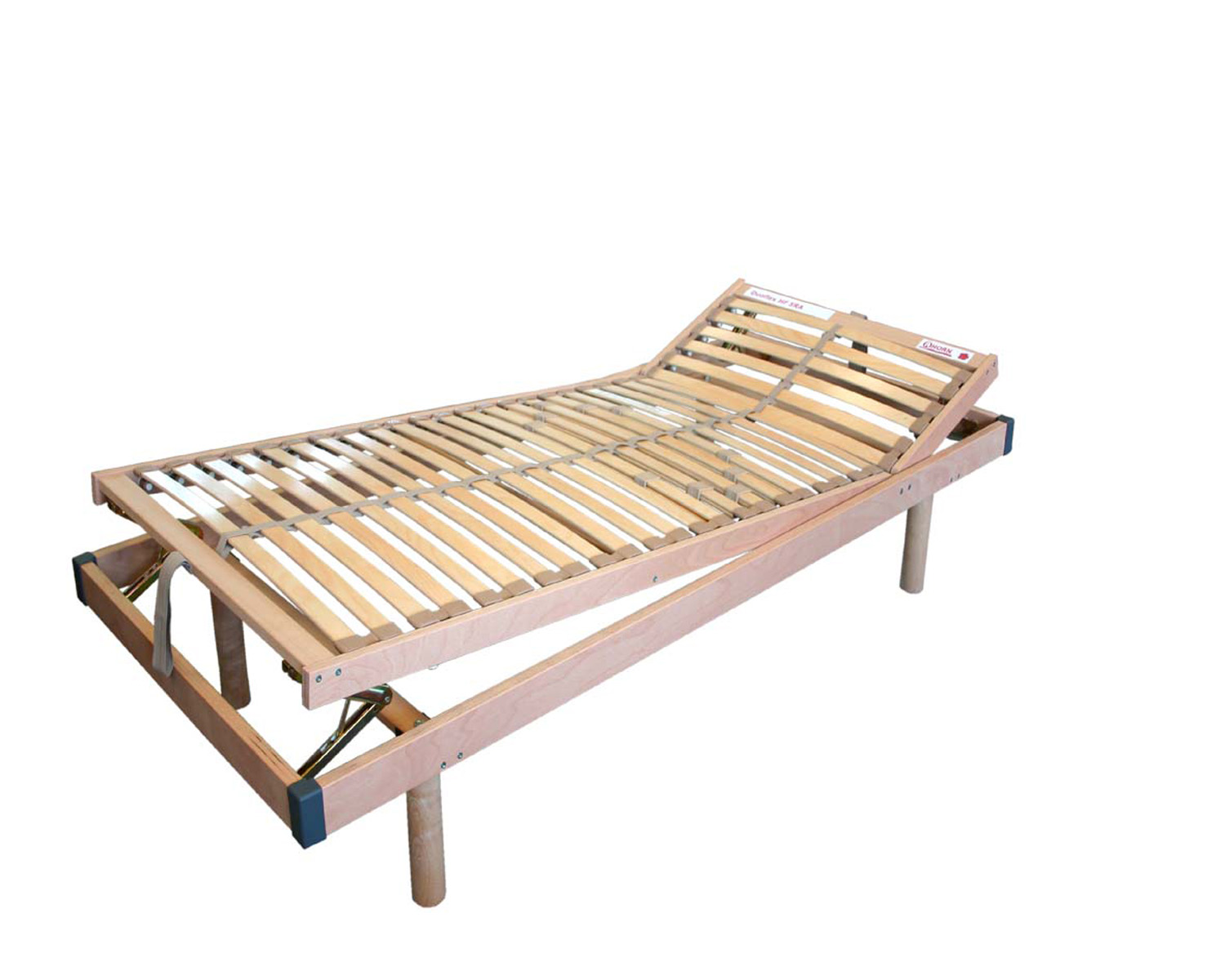

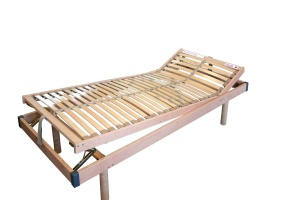

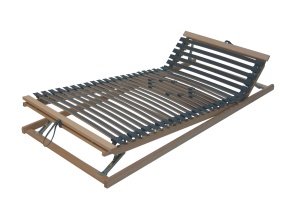

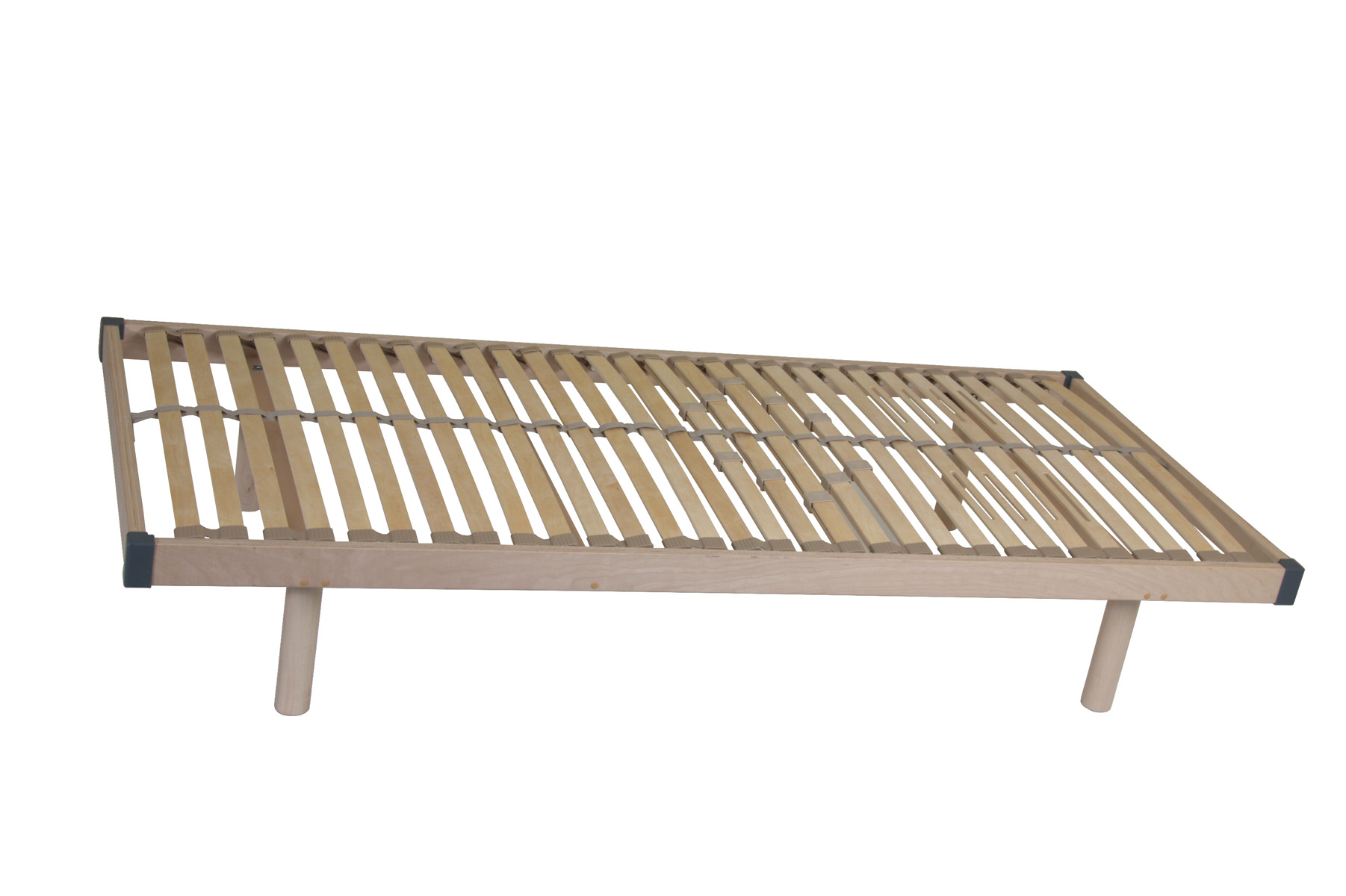

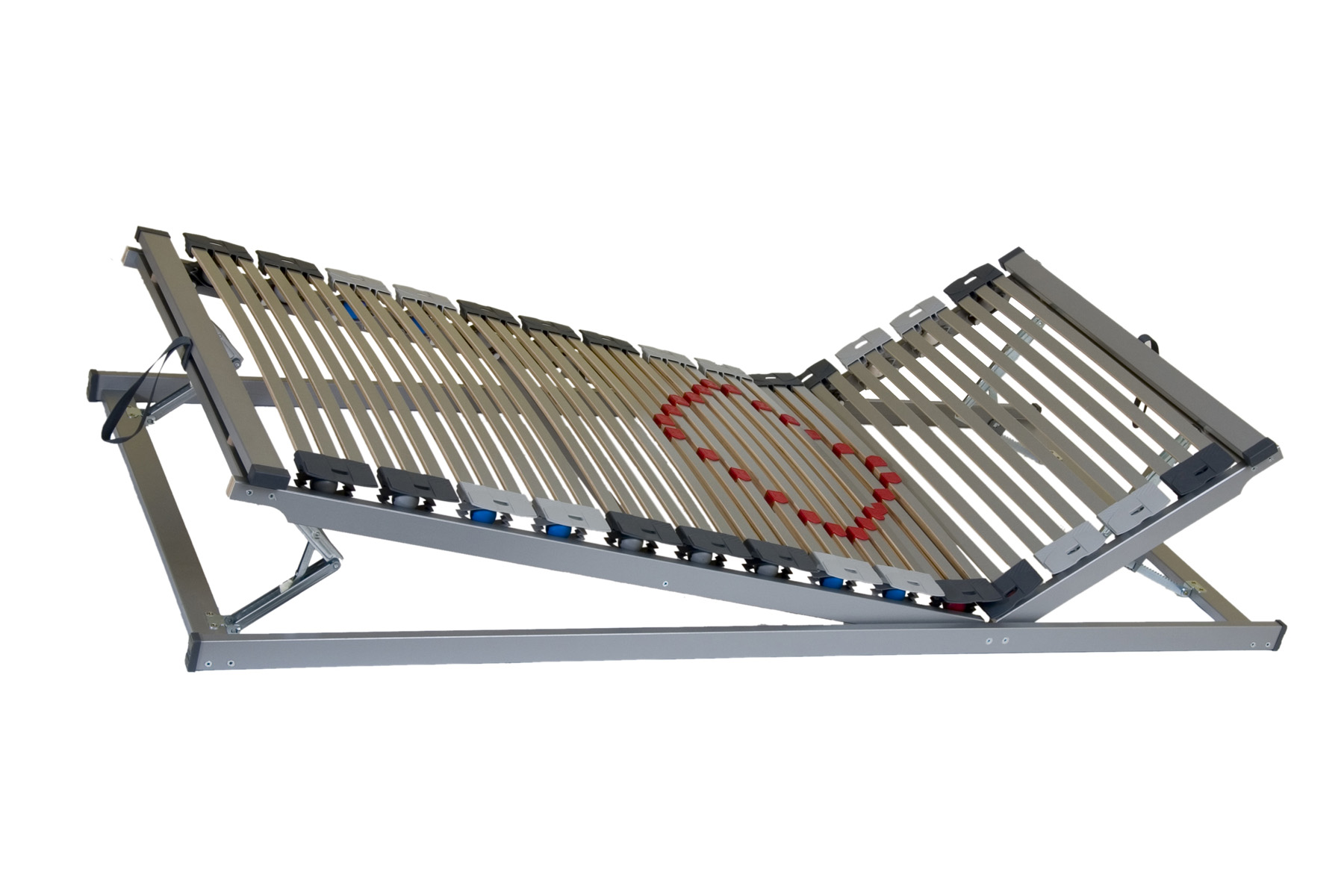

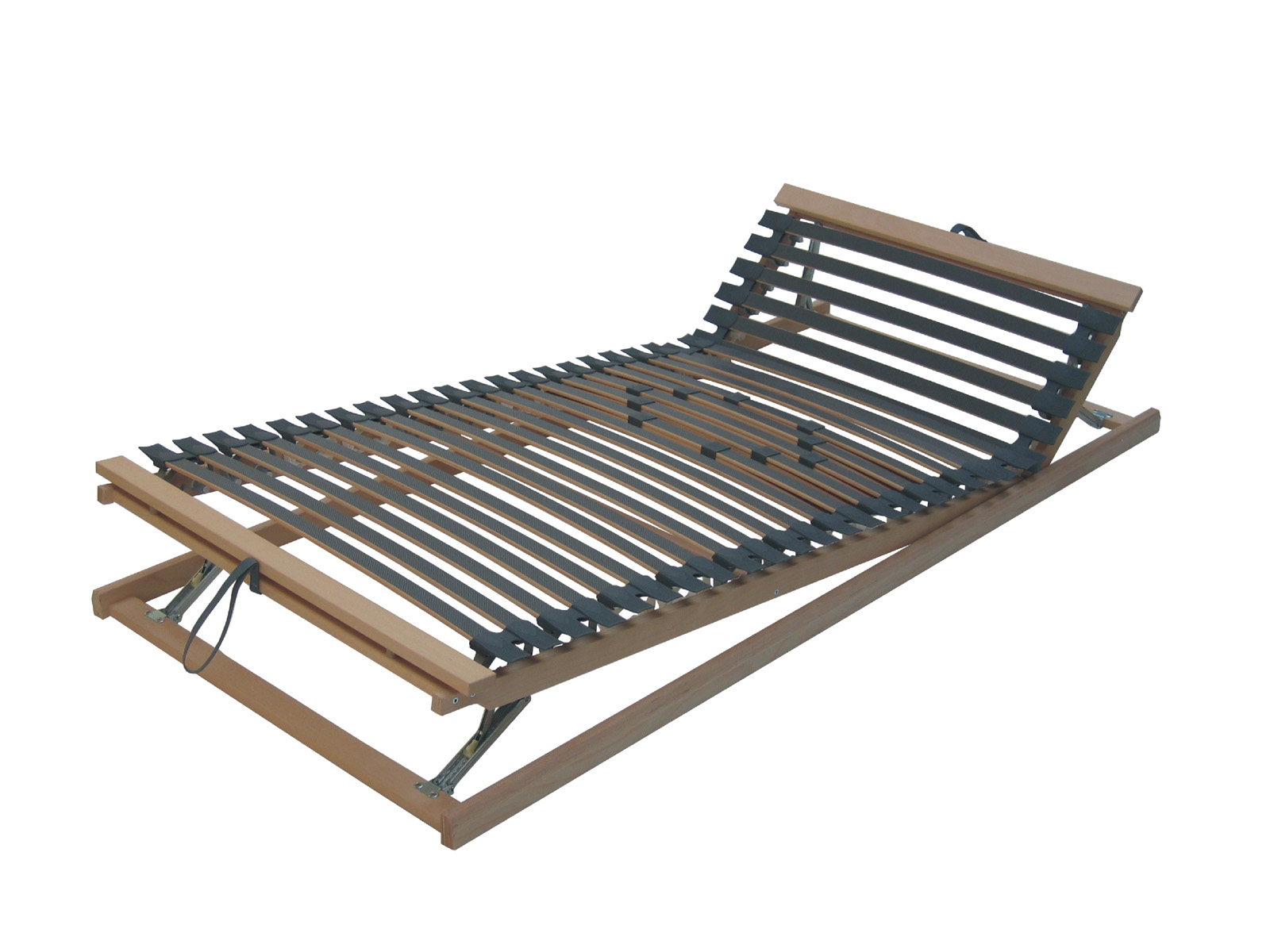

Dyas Frame is a semi product for bed frames production.

Thickness:

20, 25, 30, 35, 40 mm
(other thicknesses on customers' request)

Width:

from 100 up to 1800 mm

Length:

from 300 up to 2500 mm

The surface of the laths can be:

  • raw
  • impregnated
  • wrapped in film
  • with chamfered or rounded edges

Gluing:

Class of gluing 1 (IF 20) - ČSN EN 314-2 - can be used in interior applications according to ČSN EN 636

Quality:

PN 10 - DY / 99 - Frame laths

Sanding:

is ordinarily sanded with grain 60, which is a basic sanding along with calibration

Moisture:

6% to 12% (at the time of delivery)



Thickness Number of plies Approximate volume weight Thickness tolerance Bending strength
(surface veneer grain orientation)
(kg/m3) (mm) lengthwise crosswise
18 13x 770 +0,5/-0,5 80,0 N/mm2
tested perpendicularly to the edge
not defined
19 13x
20 14x/15x +0,5/-0,7
21 15x +0,7/-0,7
22 I6x +1.0/-0.7
25 I8x 780 +1,0/-1,0
30 22x/23x
40 30x/31x 790

Product Sheet:

Declaration of Performance:

Reference:

Certificate CARB II for gluing class 1:
